需求分析

前情提要

同心多扇形图，用于表示树形数据结构以及每一层级节点在该层总量中占比。

原始数据结构:

{   "name": "师资队伍",   "value": 19,   "children": [     {       "name": "基本情况",       "value": 3,       "children": [         {           "name": "师资规模",           "value": 2         },         {           "name": "进修情况",           "value": 1         }       ]     },     {       "name": "师资结构",       "value": 6,       "children": [         {           "name": "职称结构",           "value": 2         },         {           "name": "学历结构",           "value": 1         },         {           "name": "学缘结构",           "value": 3         }       ]     },     {       "name": "师资水平",       "value": 10,       "children": [         {           "name": "资深学术权威",           "value": 2         },         {           "name": "中年领军专家",           "value": 2         },         {           "name": "青年拔尖英才",           "value": 4         },         {           "name": "国际知名学者",           "value": 2         }       ]     }   ] }

以上仅显示了一个根节点，其他根节点的数据结构类似。

PS: 子节点值相加，和等于父节点的值。

需求定义

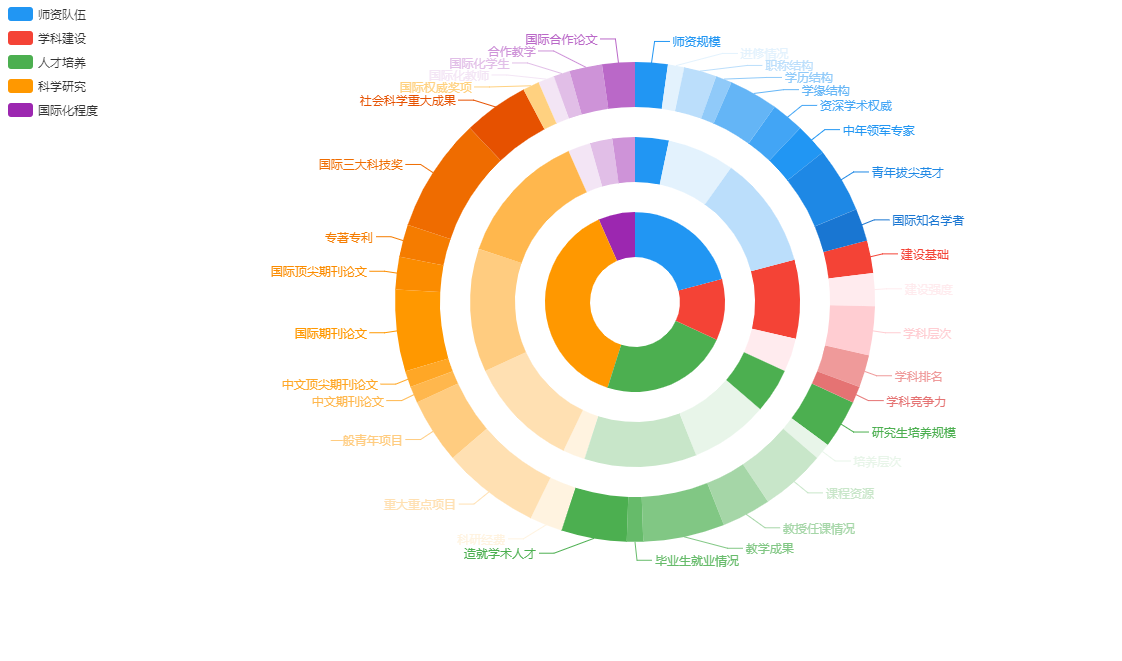

1. 绘制同心多级扇形图，可视化显示节点数值以及在同深度占比情况。
2. 当某一根节点legend点击隐藏或显示时，动态更新其关联的所有子节点。

echarts

简介

echarts是一款JS可视化图表生成工具，由百度提供.

GitHub:

https://github.com/ecomfe/echarts

官网:

http://echarts.baidu.com/index.html

相比于其他图表生成工具:

• D3:                 https://github.com/d3/d3  (国外，开源，免费）
• highCharts:    https://github.com/highcharts/highcharts（国外, 企业版收费）

等, echarts 的风格对国内开发者来说, 显然更加友好。

获取引入

NPM:

npm install echarts --save

下载地址:
http://echarts.baidu.com/download.html

CDN:

https://cdnjs.cloudflare.com/ajax/libs/echarts/3.8.5/echarts.min.js

情景分析

通过查看echarts官方实例（CV大法），我们可以轻松实现 要求1 :

 绘制同心多级扇形图，可视化显示节点数值以及在同深度占比情况。

http://echarts.baidu.com/demo.html#pie-nest

然而即使翻遍文档也没有可拿的代码来实现 要求2：

当点击legend 控制节点数据的隐藏或显示时，动态更新其关联的所有子节点。

PS:  CV大法虽好使，可不要过度依赖！

需求实现

演变数据结构

显然，原始数据结构在这里很畸形，我们需要解析并更改使之更适用于现在这种情形。

无论使用循环还是递归来演变（这里省略了这一过程，线性组合），我们需要的最终数据结构如下:

{   "level1": [     {       "name": "师资队伍",       "color": "#2196F3",       "category": 0,       "value": 19     }   ],   "level2": [     {       "name": "基本情况",       "color": "#2196F3",       "category": 0,       "value": 3     },     {       "name": "师资结构",       "color": "#E3F2FD",       "category": 0,       "value": 6     },     {       "name": "师资水平",       "color": "#BBDEFB",       "category": 0,       "value": 10     }   ],   "level3": [     {       "name": "师资规模",       "color": "#2196F3",       "category": 0,       "value": 2     },     {       "name": "进修情况",       "color": "#E3F2FD",       "category": 0,       "value": 1     },     {       "name": "职称结构",       "color": "#BBDEFB",       "category": 0,       "value": 2     },     {       "name": "学历结构",       "color": "#90CAF9",       "category": 0,       "value": 1     },     {       "name": "学缘结构",       "color": "#64B5F6",       "category": 0,       "value": 3     },     {       "name": "资深学术权威",       "color": "#42A5F5",       "category": 0,       "value": 2     },     {       "name": "中年领军专家",       "color": "#2196F3",       "category": 0,       "value": 2     },     {       "name": "青年拔尖英才",       "color": "#1E88E5",       "category": 0,       "value": 4     },     {       "name": "国际知名学者",       "color": "#1976D2",       "category": 0,       "value": 2     }   ] }

数据联动

一切关联问题的解决， 都只在于一个唯一标识的确立，这里我们使用的是 category （根节点数组下标）。

万事俱备，只欠一个 触发事件（国内外知名插件对于事件的封装和处理都很到位，API也是极尽简单)。

翻阅文档: http://echarts.baidu.com/api.html#events

 legend点选事件:

myChart.on('legendselectchanged', function (params) {     console.log(params); });

具体实现可在 源码 中查看。

PS

别问我color怎么来的，我会告诉你吗？

如果翻墙了,可以参考这个网站（专业配色）:

https://material.io/guidelines/style/color.html#color-color-palette

部分颜色截图:

我把这些组成了一个JSON以备不时之需, 如下所示:

{   "data": [     {       "category": "蓝色",       "color": "#2196F3",       "sub": ["#2196F3","#E3F2FD", "#BBDEFB", "#90CAF9", "#64B5F6", "#42A5F5","#2196F3", "#1E88E5", "#1976D2", "#1565C0", "#0D47A1","#82B1FF", "#448AFF", "#2979FF", "#2962FF"]     },     {       "category": "红色",       "color": "#F44336",       "sub": ["#F44336","#FFEBEE", "#FFCDD2", "#EF9A9A", "#E57373", "#EF5350","#F44336", "#E53935", "#D32F2F", "#C62828", "#B71C1C","#FF8A80", "#FF5252", "#FF1744", "#D50000"]     },     {       "category": "绿色",       "color": "#4CAF50",       "sub": ["#4CAF50","#E8F5E9", "#C8E6C9", "#A5D6A7", "#81C784", "#66BB6A","#4CAF50", "#43A047", "#388E3C", "#2E7D32", "#1B5E20"]     },     {       "category": "橘色",       "color": "#FF9800",       "sub": ["#FFF3E0","#FFE0B2", "#FFCC80", "#FFB74D", "#FFA726", "#FF9800","#FB8C00", "#F57C00", "#EF6C00", "#E65100", "#FFD180","#FFAB40", "#FF9100", "#FF6D00"]     },     {       "category": "紫色",       "color": "#9C27B0",       "sub": ["#F3E5F5","#E1BEE7", "#CE93D8", "#BA68C8", "#AB47BC", "#9C27B0","#8E24AA", "#7B1FA2", "#6A1B9A", "#4A148C", "#EA80FC","#E040FB", "#D500F9", "#AA00FF"]     }   ] }

源码

我将这一段代码单独提取出来放在这里, 本地新建.html文件, 复制粘贴即可在浏览器查看:

<!DOCTYPE html> <html> <head> 	<meta charset="utf-8"> 	<title>chart</title> </head> <body>  <div id="graph" style="height: 600px;"></div> <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/echarts/3.8.5/echarts.min.js"></script> <script type="text/javascript"> 	(function(config){ 		let chart = echarts.init(document.getElementById("graph"));  	    /** 	     * @params params 	     * params.name 标识当前点击的legend 	     * params.selected 标识当前选中的legend集合 	     */         chart.on('legendselectchanged', function (params) {             let options = this.getOption(), keys = Object.keys(params.selected), selected = [];              // 获取选中目录的 category 值             for(let item of keys) {                 if(params.selected[item]) {                     for(let term of config.level1)                         if(item == term.name)                             selected.push(term.category);                 }             }              // 根据 category 获取 series 中 data 数据项             options.series[1].data = config.level2.filter(item => {                 return selected.includes(item.category);             });             options.series[2].data = config.level3.filter(item => {                 return selected.includes(item.category);             });              this.setOption(options);         });          chart.setOption({             tooltip: {                 trigger: 'item',                 formatter: "{a} <br/>{b}: {c} ({d}%)"             },             legend: {                 orient: 'vertical',                 x: 'left',                 data:['师资队伍','学科建设','人才培养','科学研究','国际化程度']             },             series: [                 {                     name:'一级指标',                     type:'pie',                     label: {                         normal: {                             show: false,                         }                     },                     itemStyle: {                         normal: {                             /**                              * 自定义饼图 扇形 颜色                              * @param params                              */                             color(params) {                                 return params.data.color;                             }                         }                     },                     radius: ['15%', '30%'],                     data: config.level1                 },                 {                     name:'二级指标',                     type:'pie',                     label: {                         normal: {                             show: false,                         }                     },                     itemStyle: {                         normal: {                             color(params) {                                 return params.data.color;                             }                         }                     },                     radius: ['40%', '55%'],                     data: config.level2                 },                 {                     name:'三级指标',                     type:'pie',                     radius: ['65%', '80%'],                     itemStyle: {                         normal: {                             color(params) {                                 return params.data.color;                             }                         }                     },                     data: config.level3                 }             ]         }); 	})({         "level1": [             {                 name: "师资队伍",                 color: "#2196F3",                 category: 0,                 value: 19             },             {                 name: "学科建设",                 color: "#F44336",                 category: 1,                 value: 10             },             {                 name: "人才培养",                 color: "#4CAF50",                 category: 2,                 value: 21             },             {                 name: "科学研究",                 color: "#FF9800",                 category: 3,                 value: 35             },             {                 name: "国际化程度",                 color: "#9C27B0",                 category: 4,                 value: 6             }         ],         "level2": [             {                 name: "基本情况",                 color: "#2196F3",                 category: 0,                 value: 3             },             {                 name: "师资结构",                 color: "#E3F2FD",                 category: 0,                 value: 6             },             {                 name: "师资水平",                 color: "#BBDEFB",                 category: 0,                 value: 10             },             {                 name: "学科基础",                 color: "#F44336",                 category: 1,                 value: 7             },             {                 name: "学科水平",                 color: "#FFEBEE",                 category: 1,                 value: 3             },             {                 name: "基本情况",                 color: "#4CAF50",                 category: 2,                 value: 4             },             {                 name: "培养条件",                 color: "#E8F5E9",                 category: 2,                 value: 7             },             {                 name: "培养结果",                 color: "#C8E6C9",                 category: 2,                 value: 10             },             {                 name: "科研条件",                 color: "#FFF3E0",                 category: 3,                 value: 2             },             {                 name: "科研项目",                 color: "#FFE0B2",                 category: 3,                 value: 10             },             {                 name: "科研论文",                 color: "#FFCC80",                 category: 3,                 value: 11             },             {                 name: "科研获奖",                 color: "#FFB74D",                 category: 3,                 value: 12             },             {                 name: "国际化人员",                 color: "#F3E5F5",                 category: 4,                 value: 2             },             {                 name: "合作教学",                 color: "#E1BEE7",                 category: 4,                 value: 2             },             {                 name: "国际化成果",                 color: "#CE93D8",                 category: 4,                 value: 2             }         ],         "level3": [             {                 name: "师资规模",                 color: "#2196F3",                 category: 0,                 value: 2             },             {                 name: "进修情况",                 color: "#E3F2FD",                 category: 0,                 value: 1             },             {                 name: "职称结构",                 color: "#BBDEFB",                 category: 0,                 value: 2             },             {                 name: "学历结构",                 color: "#90CAF9",                 category: 0,                 value: 1             },             {                 name: "学缘结构",                 color: "#64B5F6",                 category: 0,                 value: 3             },             {                 name: "资深学术权威",                 color: "#42A5F5",                 category: 0,                 value: 2             },             {                 name: "中年领军专家",                 color: "#2196F3",                 category: 0,                 value: 2             },             {                 name: "青年拔尖英才",                 color: "#1E88E5",                 category: 0,                 value: 4             },             {                 name: "国际知名学者",                 color: "#1976D2",                 category: 0,                 value: 2             },             {                 name: "建设基础",                 color: "#F44336",                 category: 1,                 value: 2             },             {                 name: "建设强度",                 color: "#FFEBEE",                 category: 1,                 value: 2             },             {                 name: "学科层次",                 color: "#FFCDD2",                 category: 1,                 value: 3             },             {                 name: "学科排名",                 color: "#EF9A9A",                 category: 1,                 value: 2             },             {                 name: "学科竞争力",                 color: "#E57373",                 category: 1,                 value: 1             },             {                 name: "研究生培养规模",                 color: "#4CAF50",                 category: 2,                 value: 3             },             {                 name: "培养层次",                 color: "#E8F5E9",                 category: 2,                 value: 1             },             {                 name: "课程资源",                 color: "#C8E6C9",                 category: 2,                 value: 4             },             {                 name: "教授任课情况",                 color: "#A5D6A7",                 category: 2,                 value: 3             },             {                 name: "教学成果",                 color: "#81C784",                 category: 2,                 value: 5             },             {                 name: "毕业生就业情况",                 color: "#66BB6A",                 category: 2,                 value: 1             },             {                 name: "造就学术人才",                 color: "#4CAF50",                 category: 2,                 value: 4             },             {                 name: "科研经费",                 color: "#FFF3E0",                 category: 3,                 value: 2             },             {                 name: "重大重点项目",                 color: "#FFE0B2",                 category: 3,                 value: 6             },             {                 name: "一般青年项目",                 color: "#FFCC80",                 category: 3,                 value: 4             },             {                 name: "中文期刊论文",                 color: "#FFB74D",                 category: 3,                 value: 1             },             {                 name: "中文顶尖期刊论文",                 color: "#FFA726",                 category: 3,                 value: 1             },             {                 name: "国际期刊论文",                 color: "#FF9800",                 category: 3,                 value: 5             },             {                 name: "国际顶尖期刊论文",                 color: "#FB8C00",                 category: 3,                 value: 2             },             {                 name: "专著专利",                 color: "#F57C00",                 category: 3,                 value: 2             },             {                 name: "国际三大科技奖",                 color: "#EF6C00",                 category: 3,                 value: 7             },             {                 name: "社会科学重大成果",                 color: "#E65100",                 category: 3,                 value: 4             },             {                 name: "国际权威奖项",                 color: "#FFD180",                 category: 3,                 value: 1             },             {                 name: "国际化教师",                 color: "#F3E5F5",                 category: 4,                 value: 1             },             {                 name: "国际化学生",                 color: "#E1BEE7",                 category: 4,                 value: 1             },             {                 name: "合作教学",                 color: "#CE93D8",                 category: 4,                 value: 2             },             {                 name: "国际合作论文",                 color: "#BA68C8",                 category: 4,                 value: 2             }         ]     }); </script> </body> </html>
